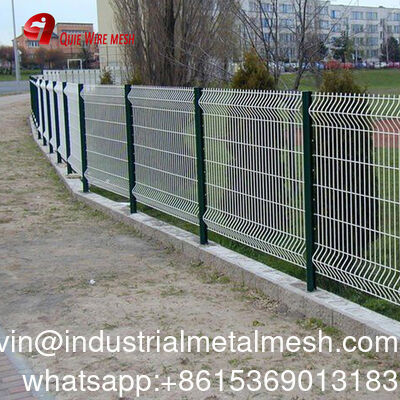

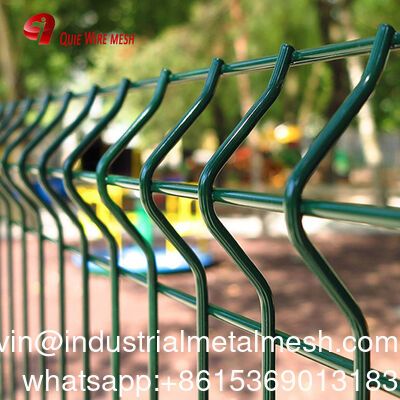

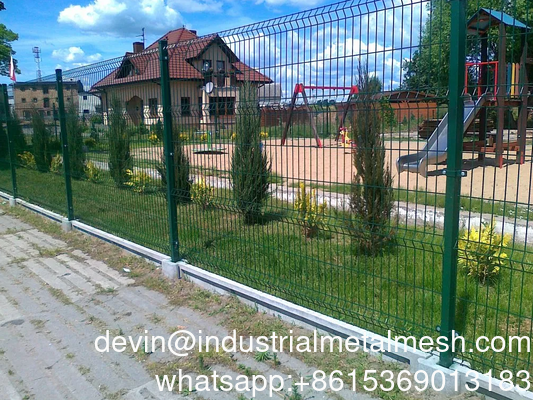

3D Panel Fence 3D Curved Steel Welded Fence Curved Wire Fence V Mesh Wire Fence Security Fence

3D Panel Fence 3D Curved Steel Welded Fence Curved Wire Fence V Mesh Wire Fence Security Fence

Grande immagine :  3D Panel Fence 3D Curved Steel Welded Fence Curved Wire Fence V Mesh Wire Fence Security Fence

Dettagli:
Luogo di origine: Cina
Marca: XMESH
Certificazione: ISO9001:2008, SGS, CE
Numero di modello: 46WMP
Termini di pagamento e spedizione:
Quantità di ordine minimo: 100 pezzi
Prezzo: USD6.90-USD45.71
Imballaggi particolari: Film plastico e pallet di legno.
Tempi di consegna: 10-25 giorni
Termini di pagamento: 30% TT in anticipo, saldo prima del carico
Capacità di alimentazione: 1000 pc/al giorno
Descrizione di prodotto dettagliata
Materiale: Cavo di acciaio al carbonio, filo zincato Apertura a rete: 1" x1», 1-1/2 " x1-1/2», 2" x2», 2" x1 " ecc.
Diametro del filo: 0.4mm - 6.0mm Dimensioni del pannello: 1.2x2.4M, 1.2x3.0M, ect di 1.8x3.6M.
Trattamento superficiale: Rivestimento in PVC Altezza della posta: 1.1M-3.0M
E-mail: devin@industrialmetalmesh.com WhatsAPP: +8615369013183
Evidenziare:

3D curved steel welded fence

,

V mesh wire security fence

,

curved metal fence with warranty

3D Panel Fence 3D Curved Steel Welded Fence Curved Wire Fence V Mesh Wire Fence Security Fence



Welded Mesh Fencing is an economical and durable fencing type that suits a wide variety of applications.

The fence panels are typically constructed with rolled top and bottom profiles, which adds strength and durability to the fence panels, without adding additional weight. The design means the panels remain light weight and cost effective, which make weld mesh panels ideal for multiple applications.

Most commonly welded mesh panels are used for boundary fencing and secured compounds due to the added strength of the welded mesh design and heavier wire diameters, making it difficult to cut or damage.

curved mesh fence



3D Welded wire mesh fence
Triangle bend fence is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Triangle bend fence is pretty light yet durable, its composition is simply wire welded together to make a fence. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.
Mesh Opening
50x100mm/50x150mm/50x200mm/55x200mm/75x150mm
Wire Diameter
3.0/3.5/4/4.5/5.0mm
Panel Height
0.6m-3.0m ( Suggest size : 2m/2.4m/3m )
Panel Width
2.0m-3.0m ( Suggest size : 2m/2.5m/2.9m )
Post Type
Round Post : 48x1.5/2.0mm 60x1.5/2.0mm
Square Post(SHS) : 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm
Rectangular Post(RHS) : 40x60x1.5/2.0mm 40x80x1.5/2.0mm
60x80x1.5/2.0mm 80x100x1.5/2.0mm
Surface Treatment
hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color
RAL 6005 green, RAL 7016 gray, All RAL color can be customized
Note
The fence can be customized according to your required if above specification is not satisfied with you



  • Easy Assembly and Eco-Friendly: This fencing panel features a user-friendly design that can be easily assembled, making it a convenient choice for garden owners. Additionally, it is eco-friendly, ensuring a guilt-free installation process.
  • Waterproof and Galvanized for Protection: The product is coated with a waterproof layer and galvanized to provide superior protection against corrosion, guaranteeing a long lifespan and minimal maintenance.
  • Certified Quality and Installation Support: Our PVC-coated 3D V-bending welded wire mesh fence panel meets the ISO 9001:2008 certification standards and comes with a video installation service, ensuring a hassle-free installation process and a high-quality product.



Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.





3D curved PVC coated galvanized welded iron wire mesh fence panel
material steel iron wire,galvanized wire
surface treatment PVC coated ,powder coated
color blue,green,black,white,yellow,grey,etc.
wire diameter 4.5mm,5mm,6mm
hole size 50x200mm,75x200mm
fence height 1.5m,1.6m,1.8m,2m,2.1m
fence length 2m,2.5m
post peach type post,square type post

3D Panel Fence 3D Curved Steel Welded Fence Curved Wire Fence V Mesh Wire Fence Security Fence 13D Panel Fence 3D Curved Steel Welded Fence Curved Wire Fence V Mesh Wire Fence Security Fence 23D Panel Fence 3D Curved Steel Welded Fence Curved Wire Fence V Mesh Wire Fence Security Fence 3
