| Materiale: | Acciaio | Trattamento superficiale: | zincato a caldo |
|---|---|---|---|
| Tipo: | Contenitore di filo | Capacità di carico: | 500kg |
| E-mail: | devin@industrialmetalmesh.com | whatsapp: | +8615369013183 |
| Evidenziare: | foldable steel wire mesh container,stackable garage storage basket,wire mesh storage container with warranty |
||

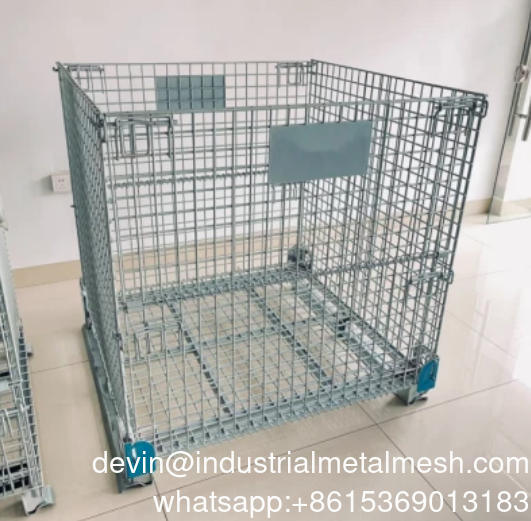

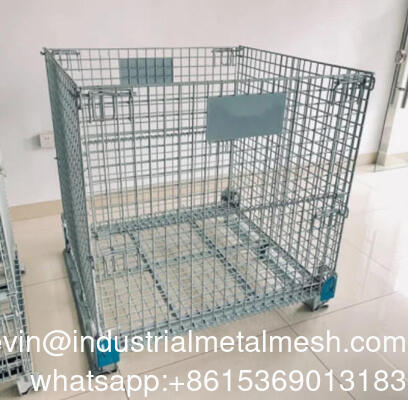

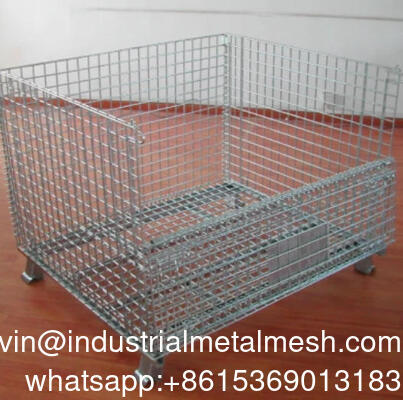

Foldable Stackable Steel Wire Mesh Container for Garage Storage
Mesh Stillage Cages with a Half Drop Front are popular nationwide for a huge range of uses, including those in logistics, storage, warehousing and manufacturing. it is sturdy, hardwearing and versatile Mesh Stillage Cage features a half drop front to one side, making access to products much easier when Mesh Stillage Cages are stacked.
Mild steel Welded Wire Mesh Containers
Material: Low carbon steel wire Q235
Wire Diameter: 5mm - 6.0mm
Grid Size: 50mm x 50mm, 50mm x 100mm
Surface treatment: Zinc coated or powder coated
Remark: According to customers' request or OEM
Container Dimension: Heavy type, medium type, small type
![]()
storage cage
Warehouse cage, also known as warehouse cage and butterfly cage, is an important kind of logistics container in warehousing and transportation. It has the advantages of fixed storage capacity, neat storage, clear storage, easy inventory counting and so on. At the same time, it also improves the effective utilization of warehouse space. The storage cage can be folded freely and stored when not in use.
Details
1. It is made of high-quality steel and cold-rolled and hardened, with high strength and large loading capacity.
2. Uniform specifications, fixed capacity, storage of goods at a glance, easy to inventory inventory.
3. The surface is galvanized, beautiful and anti-oxidation, and has a long service life.
4. It adopts international standards and can be used with containers to effectively improve space utilization.
5. Can be stacked on top of each other to achieve three-dimensional storage.
6. Environmentally friendly treatment, health immunization, turnover, storage and recycling do not pollute the environment.
7. Efficient operation can be carried out with equipment such as forklifts, cattle, elevators and cranes.
8. The folding structure has low recycling cost and is an alternative to wooden crates.
9. Wheels can be mounted at the bottom, making it easy to turn around inside the factory.
Specification
| Product name | Foldable Wire Mesh cage | |||
| Color | Regular is Silvery/Supports various color customization | |||
| Load Capacity | 200-1500KG | |||
| Specifications | Length:800-1800mm Width:600-1200mm Height:640-1350mm |
|||
| Specific specifications and dimensions | ||||
| Outer Dimension L*W*H (mm) |
Inside Dimension L*W*H (mm) |
Mesh Size (mm) |
Wire Diameter (mm) |
Net Weight (KG) |
| 800*600*640 | 750*550*500 | 50*50 | 5.0 | 20.6 |
| 800*600*640 | 750*550*500 | 50*50 | 5.5 | 22.4 |
| 800*600*640 | 750*550*500 | 50*50 | 5.8 | 25.9 |
| 800*600*640 | 750*550*500 | 50*50 | 6.0 | 28 |
| 1000*800*840 | 950*750*700 | 50*100 | 5.0 | 27.6 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.0 | 31.2 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.5 | 34.6 |
| 1000*800*840 | 950*750*700 | 50*100 | 5.8 | 37.5 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.8 | 41.1 |
| 1000*800*840 | 950*750*700 | 50*50 | 6.0 | 43 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.0 | 35.9 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 5.0 | 42.5 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.5 | 39.3 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.8 | 46.6 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 5.8 | 53.6 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 6.0 | 60 |
| 1500*1100*1100 | 1450*1050*960 | 50*100 | 5.8 | 63.5 |
| 1600*1200*1340 | 1550*1150*1200 | 50*100 | 5.8 | 77.5 |
| 1800*1200*1350 | 1750*1150*1110 | 50*100 | 5.8 | 90 |
| All Wire Mesh Cage's Specifications, dimensions, and colors can be customizable. If you have any further requirements, please click here to contact us for instant inquiry. |
||||
![]()
Save cost on Mesh Stillage Cages with Half Drop Front when you buy from niceracktrolley's .
Mesh Stillage Cages by niceracktrolley's are engineered and customised with a half drop front at our suzhou city workshop by our own team. Mesh Stillage Cages are proudly Made In Suzhou, helping us get your stillages to you quickly so they’re ready for action! Don’t miss out - order your Mesh Stillage Cages with Half Drop Front today.
1220L*1020W*1200H mm....
Load ability 1000 kg...
Size and load ability customized
Packaging:
* Plastic banding & Stretch film wrapped
* easy loading and unloading with standard forklift truck
* as your requirement
Delivery:
7-15 days
![]()
