Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting
Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting

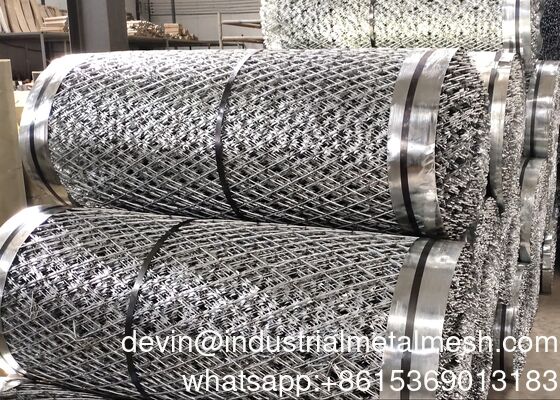

Grande immagine :  Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting

Dettagli:
Luogo di origine: Cina
Marca: Qijie
Certificazione: ISO9001
Numero di modello: QJ-R001
Termini di pagamento e spedizione:
Quantità di ordine minimo: 100 rotoli
Prezzo: discuss
Imballaggi particolari: Borsa di tessuto all'esterno, scatola di cartone, ecc.
Tempi di consegna: 15-20 giorni
Termini di pagamento: 30% TT in anticipo, saldo prima del carico
Capacità di alimentazione: 100 tonnellate alla settimana
Descrizione di prodotto dettagliata
Materiale: filo di acciaio zincato Applicazione: recinzione di sicurezza
Tipo: Maglia espansa colore: Argento
Utilizzo: Costruzione Caratteristica: Resistenza della corrosione, durevole, montata facilmente
Trattamento superficiale: Zincato a caldo Misurare: come requisito
E-mail: devin@industrialmetalmesh.com Whatsapp: +8615369013183
Evidenziare:

welded razor barbed wire fence

,

prison razor wire netting

,

concertina razor wire mesh

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece​



Welded razor mesh (or Welded razor fence or Diamond razor mesh) is a straight razor barbed wire , welded mesh processed, which can be welded into a diamond, rectangular hole (aperture can be produced according to customers' requirements), nice, and the card cannot climb down, blocking strong deterrent force strong. It can be integrated with other fence and can also be used alone.
Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll or panels form for transport.
This welded razor wire mesh security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance. Welded razor wire mesh is installed in various parts of the world's airports, border bases, water substation, the border fence, oil depots, factories and so on.

Type Razor Mesh(Diamond Hole) Razor Mesh(Square Hole)
Thickness of Sheet 0.5mm±0.05mm
Wire Diameter 2.5mm±0.1mm
Height 1.0m-2.4m
Length 2.0m-10.0m
Mesh Size 75mmx150mm
100mmx200mm
150mmx300mm
150mmx150mm
200mmx200mm
300mmx300mm



Application:
Rhombus Welded Razor Mesh Fence is the ideal solution for any facility perimeter where an

aggressive visual deterrent and physical barrier is required.
Rhombus Welded Razor Mesh Fence Specifications:
Standard Heights: 6', 7 ½' and 10' (1.8m, 2.3 m and 3m)
Aperture Size: 3"*6" high density (7.62cm*15.24cm, Standard density also available)
Standard Panel Length: 20'6" (6.25m)
Blade length: 0.98" (2.5cm)
Blade thickness: 0.02" (0.5mm)
Blade width: 0.74" (19mm)
Blade spacing: 1.97" (5cm)



Welded Razor mesh fence
Name Core Wire Sheet Razor Style Mesh Aperture Finished Size Package
Welded Razor Mesh 2.5±0.05mm 0.5±0.03 mm BTO-22 BTO-28
BTO-30
75X150mm
150X300mm
as standard
HDG
or PC coated
1.2x6.0m
1.8x6.0m
2.1x6.0m
2.4x6.0m
In roll or pallet

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 0
Name Welded Razor Mesh Specification
Welded Razor Mesh Core Wire Razor Strip (sheet) Square Razor Mesh Size Diamond Razor Mesh Size
2.50±0.05 mm High Tensile Galvanised Wire
Or stainless steel wire AISI304, AISI430, AISI316, AISI304L, AISI316L
0.50±0.05 mm Galvanised sheet strip razor
Or stainless steel sheet trip AISI304, AISI430, AISI316, AISI304L, AISI316L
50 × 150 mm
75 × 150 mm
100x150 mm
75 × 150 mm
150 × 300 mm
Other Mesh Sizes According to Customers' requirement

 Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 1

Galvanized anti-corrosion
Quick and easy for installation
Prevent sunlight, resistance against weathering drying
The appearance of the dreaded and excellent protective performance.
Sharp razor and it is almost impossible to climb.
Solid welded, high-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Various type can be chosen, square mesh, diamond mesh, etc
Various materials can be chosen, galvanized, stainless steel, with various colors.

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 2

Application:

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 3

Packing:

1. Packing will be different based on the client's request.
2. Normally, welded razor mesh is packed with waterproof paper inside and woven bag outside.
3. About 15 rolls per small bundle, and put on the wood pallet or in the carton box

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 4

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 5



Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 6



Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 7
