Consist of Spider Spiral Rope Mesh Active Protective System

Consist of Spider Spiral Rope Mesh Active Protective System

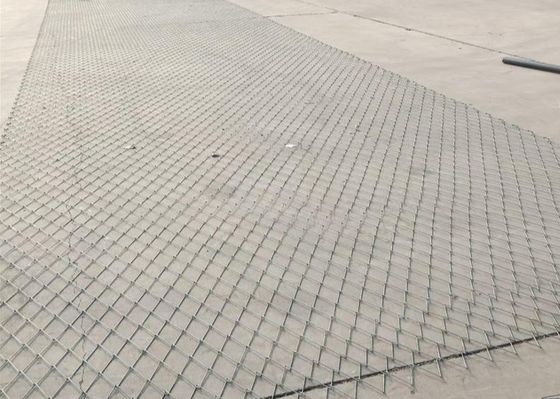

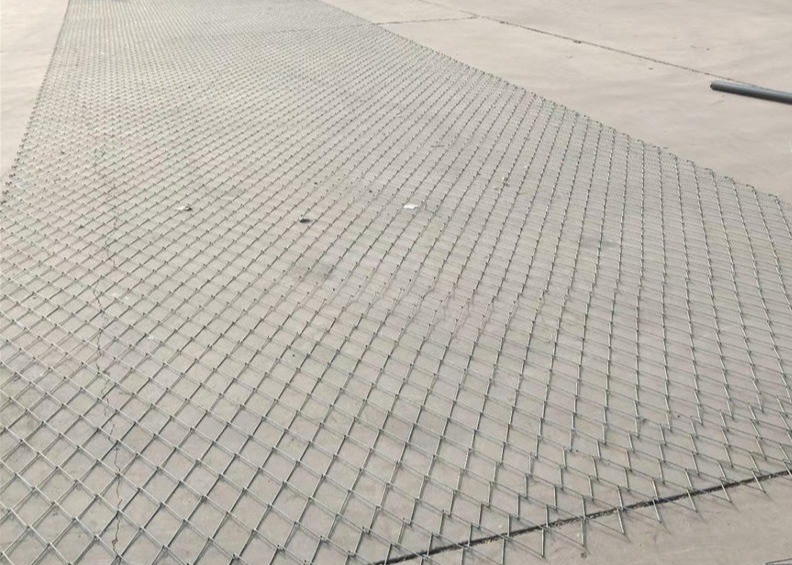

Spider Spiral Rope Mesh is most commonly applied in GSS2A, GSR2A systems with its functionality similar to that of GPS2 active net. Spider Spiral Rope Mesh is a protective net produced by twisting three strands of high tensile strength steel wire (≥1770Mpa) and with a diameter of 3.0mm/4.0mm. 3.5x10m general nets can be designed according to the requirements of 3.0 to 4.5m spacing with a depth range of 2 to 8m. The connecting bolts secure the mesh to spider anchor plates with rectangular bolt distribution or plum shaped distribution. Because of the special structure of spider nets, the bolts can be arranged more sparsely for effective slope reinforcement that is better than traditional diamond mesh type GPS series.

Spider Spiral Rope Mesh System is an active slope protection system that is great for high steep rock formations and prevents boulders and loose rocks from falling.

Normal Specification of Spider Spiral Rope Mesh
Aperture shape: Diamond
Aperture Size: 164x270mm (+/-5%) 180x300mm(+/-5%) 292x500mm (+/-5%) etc
Wire Diameter:3.0mm / 4.0mm
Strands Structure:1 x 3 Strands
Monofilament intensity: Not less than 1770N/mm2
Zn/Al Alloy Steel Wire: Zinc mass no less than 150g/m2
Breaking force: 195-220KN/m

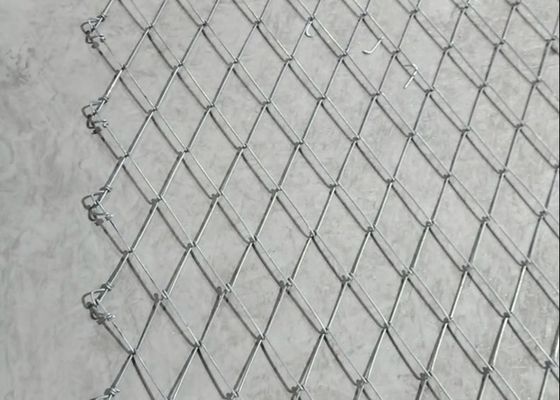

Mesh Ends Knotted
Roll Width: 2.9m, 3.5m, etc
Roll Length: 10m, 20m, 30m, etc

Consist of Spider Spiral Rope Mesh Active Protective System
Spider spiral rope mesh
High strength steel wire mesh
Prestressed anchor/bolts
Special anchor bearing plate
Sewing rope
Boundary rope

Product Feature of Spider Spiral Rope Mesh
Simple structure, efficient installation
New structure design theory, model and layout of the anchor selection are more targeted
Special mesh and anchor form bring greater slope pre-pressure, more optimized system stress transfer
Longer anticorrosive life
More economical investment.
